LiteSpeed Web Server as Proxy

The purpose of a Proxy is to expand on functionality and add an extra layer of security.

You can create a web server proxy with LSWS in two steps:

  1. Create an external app, unless the proxy is on the same server. If the proxy is on the same server, you can skip this step.
  2. Use a context, or use either the ProxyPass directive or rewrite rules with the [P] proxy flag in .htaccess

When configured correctly, LiteSpeed Web Server will act as a proxy and handle client requests meant for a backend server, like so:

  1. The client sends a request to LiteSpeed Web Server.
  2. LSWS forwards that request to the backend server.
  3. The backend server sends a response back to LSWS.
  4. LSWS responds back to the client, as if there was no backend server involved.

Create an External App

If the proxy is on a different server, you need an external app.

Log in to the LSWS WebAdmin Console and navigate to Configuration > Server > External App tab and click Add. The external app can also be added at the virtual host level, but adding at server level is recommended.

!External App Add Set Type to Web Server and click Next.

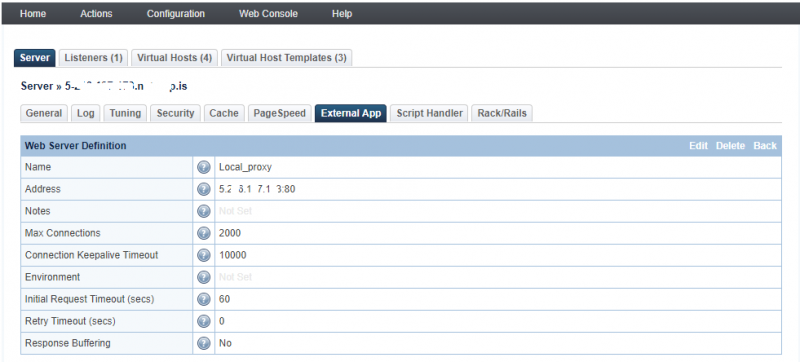

!External App Settings

Set the following, and click Save:

  • Name - Any unique external app name. It should not start with "http://". For example, Local_proxy.
  • Address - The IP:PORT or UDS socket of the backend server. It cannot be a domain name. For example, the frontend is on port 443, and the backend is on 192.0.2.0:80, so you would enter the backend 192.0.2.0:80 here, replacing 192.0.2.0 with the actual IP address. Please remember do not add "http://" or "https://" here.
  • Max Connections - The maximum number of concurrent connections to this Web Server at any time.
  • Initial Request Timeout (secs) - The maximum time in seconds the server will wait for a response.
  • Retry Timeout (secs) - The period of time that the server waits before retrying a request.

Perform a Graceful Restart to have the changes take effect.

Use a Context or Rewrite Rules

Use a Context

You can use this method if you've set up your external app at the virtual-host level. After you have done so, navigate to the Context tab and click Add.

Set Type to Proxy and click Next.

Set the following, and click Save:

  • URI: How users will access the web server. For example, /br/. If a value other than / is used, be sure that the directory exists and is accessible on the backend web server.
  • Web Server: Select the server that was created in the previous step.

Perform a Graceful Restart to have the changes take effect.

The URL for vhost/context (for example, example.com/br/) should now act as a proxy from the external app web server.

Use Rewrite Rules

You can either use the ProxyPass directive, or the [P] flag in your .htaccess rewrite rules. Here are some examples using the Local_proxy external app created earlier, and the www.example.com virtual host:

Example

Proxy to a site on the backend with the same domain name using the [P] flag:

RewriteRule (.*) http://Local_proxy/$1 [P]

Example

Proxy to a site on the backend with a different domain name using the [P] flag:

RewriteRule ^(.*)$ http://Local_proxy/$1 [P,E=Proxy-Host:www.example.com]
The URL for the vhost should now act as a proxy for the external app web server.

Example

Proxy to a site on the same server, no external app required:

RewriteRule ^(.*)$ https://127.0.0.1:5000/$1 [P,L]
Use 127.0.0.1:<port> if you don't want to create an external app. The rewrite rule proxy target will be created automatically. If you use a domain name without creating an external app–even if the domain is hosted on the same server–it will result in a 500 status code.

Example

Create a cPanel webmail-like proxy. In this example, cPanel's www.example.com/webmail proxy loads one installation at http://127.0.0.1/rainloop/:

ProxyPass "/webmail/" "http://127.0.0.1/rainloop/"
or
RewriteRule /webmail/(.*) http://127.0.0.1/rainloop/$1 [P]

Testing

  1. Check the backend: Visit http://www.example.com via the curl command to make sure the backend is running ok.
  2. Check the frontend: The example front end is on port 443. Visit https://www.example.com and it should proxy/return the backend correctly.

Custom Request Headers

If you've come from the nginx world, you may be used to using proxy_set_header. With LiteSpeed, if you need to specify custom request headers to be added to the forwarded request, you can use the RequestHeader directive. Refer to Apache's RequestHeader documentation for details.

Troubleshooting

If you see an error like this:

[REWRITE] Proxy target is not defined on external application list, please add a 'web server' with name 'https://Local_proxy'

It means the proxy Local_proxy was not defined in an external application. You need to create a web server proxy on the external application named Local_proxy (without http:// or https://).
