# Configuration¶

This step is optional. Once the plugin is activated, your cache is already up and running, but on the configuration screen, you can customize a few settings.

To change settings, visit http://example.com/index.php?route=extension/module/lscache.

## Button Row¶

### Purge All LiteSpeed Cache¶

The orange trash can button at the top of the page is the Purge All LiteSpeed Cache button. It clears the entire LiteSpeed cache for this virtual host. This includes any other web apps using LSCache (WordPress, XenForo, etc.) on this vhost.

### Rebuild All LiteSpeed Cache¶

The green lightning bolt button at the top of the page is the Rebuild All LiteSpeed Cache button. It will generate cache files for every cacheable page on this site.

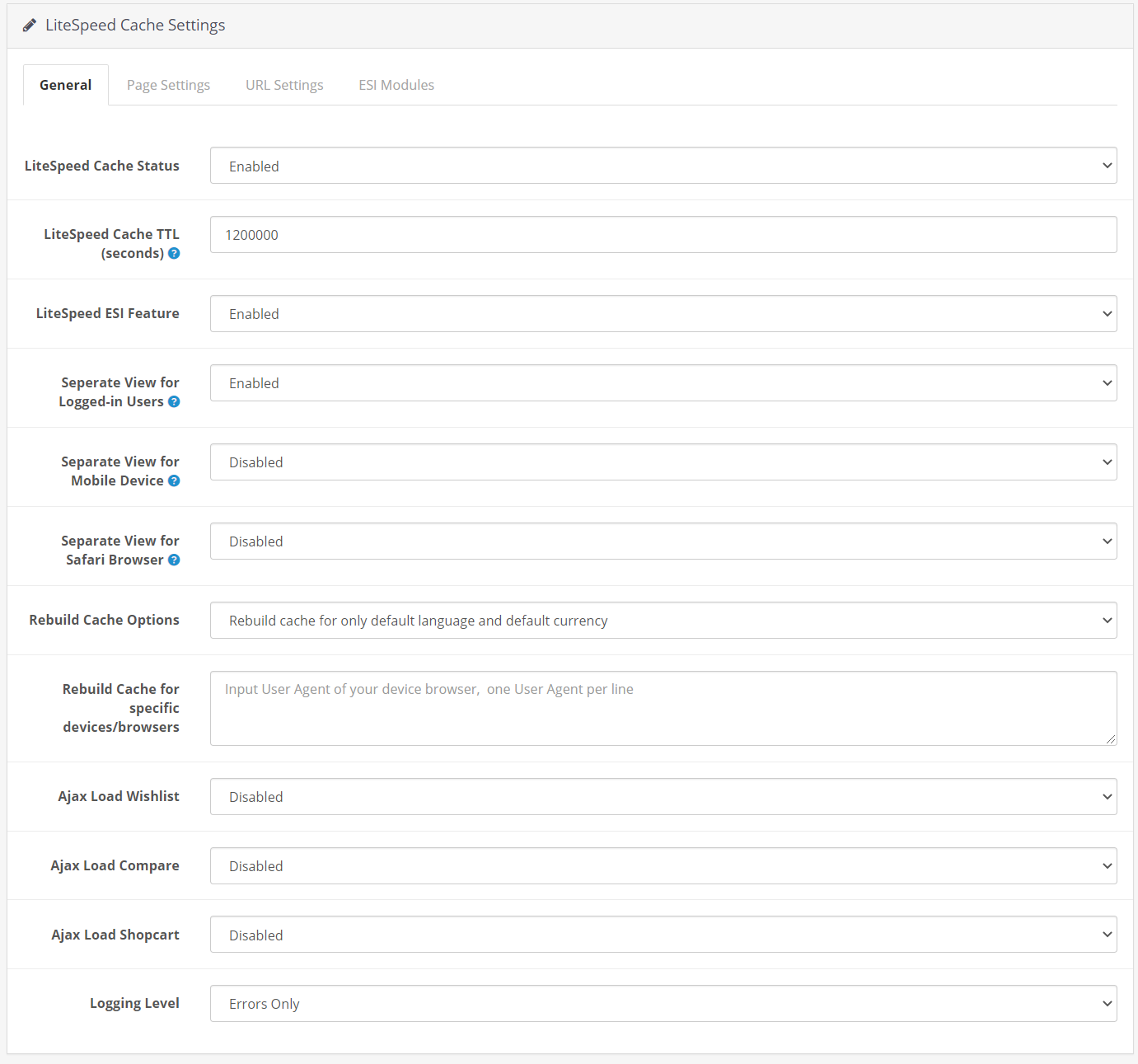

## General Tab¶

### LiteSpeed Cache Status¶

Enabled

This is where you turn LSCache on and off. It is Enabled by default and should remain that way, if you wish for your site to be cached.

### LiteSpeed Cache TTL (seconds)¶

1200000

The number of seconds that a cache object is valid before it expires. The default of 1200000 is equivalent to roughly 14 days. YOu can change this as necessary to cache your site for more or less time.

### LiteSpeed ESI Feature¶

Enabled

ESI is what allows LiteSpeed to cache shopping cart and other private content on publicly cached pages. Enable this, if you want pages with private content to be cacheable.

### Seperate View for Logged-in Users¶

Enabled

When this option is enabled, two copies of each page are saved in public cache: one for the logged-in users, and one for the guest users. If disabled, only one cache copy is saved for both logged-in and guest users to share.

### Separate View for Mobile Device¶

Disabled

If your mobile and desktop site have two different views, you will want to create two separate cache copies, so that only mobile users are served the mobile view and only desktop users are served the desktop view. Do not enable this option if you have a single responsive theme. It is only for sites where there are two different themes.

Please check your .htaccess file. If this option is disabled, then the mobile view section should be commented out. If this option is enabled then the mobile view section should not be commented out.

### Separate View for Safari Browser¶

Disabled

You can create a separate view to be cached only for users of the Safari Browser. All other browsers will share another view.

Please check your .htaccess file. If this option is disabled, then the Safari view section should be commented out. If this option is enabled then the Safari view section should not be commented out.

### Rebuild Cache Options¶

Rebuild cache for only default language and default currency

This option controls what views are processed when the cache is rebuilt. The more views you rebuild, the harder it is on your server. If you have the resources to handle it, you can rebuild cache for all language and currency combinations.

### Rebuild Cache for specific devices/browsers¶

You may rebuild cache views based on user agent, if you wish. List one device or browser per line.

Disabled

When enabled, ajax is used to load the wishlist.

Disabled

When enabled, ajax is used to load compare.

Disabled

When enabled, ajax is used to load the shopcart.

### Logging Level¶

Errors Only

If you are not currently experiencing issues you wish to debug, you can leave the logging level on Errors Only, or Disabled. If you are actively debugging the site, set it to Debug Information. Just remember to set it back the way it was when you are finished debugging, or the log may consume considerable disk space.

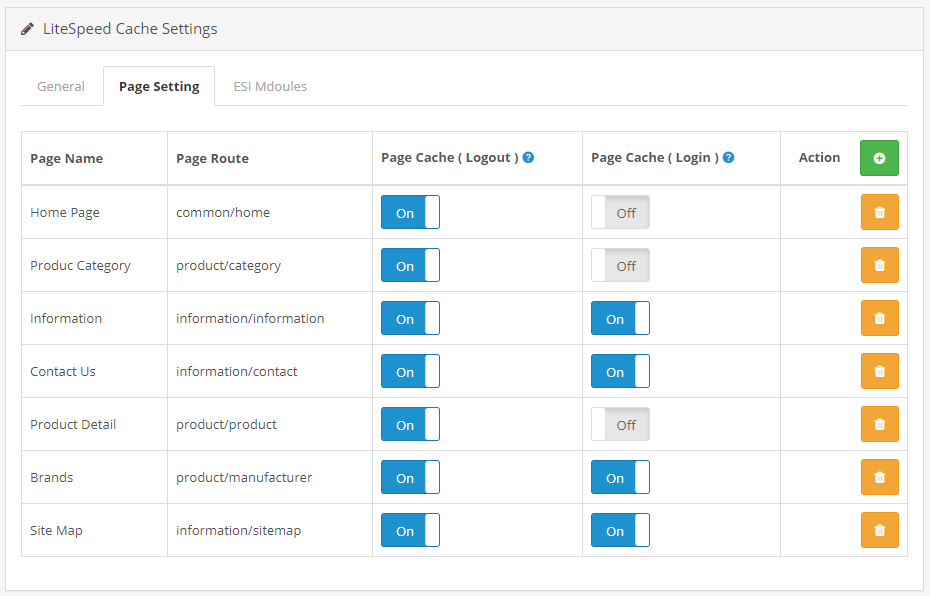

## Page Settings Tab¶

All of the pages are listed on this tab, and you have the ability to determine how each page will be cached. Some pages may be cached for logged-in users, some may be cached for non-logged-in users, and some may be cached for both.

Use the green button to add a new page to the list.

Use the orange trash can button to purge the given page from cache.

### Verify a Page is Not Being Cached¶

If you have configured LSCache to exclude certain content, you can use this method to verify that it works as expected:

1. From a non-logged-in browser, navigate to the page, open the Network tab in the developer tools, refresh the page, and click the first listed resource. This should be the URI of the page, as described above.
2. Look for the X-LiteSpeed-Cache-Control: no-cache header. If you find it, then the page has successfully not been served via LSCache.

It's also a good idea to make sure that the browser is not caching the page. For that to be true, you need to look for two headings: - cache-control: no-cache, must-revalidate, max-age=0 - expires: Wed, 11 Jan 1984 05:00:00 GMT

Tip

The date in the expires header can be any date that is prior to the current date.

If either of those headers is not present, or has a different value, the browser is likely caching your page. This can lead to serving outdated or stale content. Typically, browser caching is accidentally enabled via bad optimization rules that add the cache control header to dynamic requests. Check your .htaccess file to fix this.

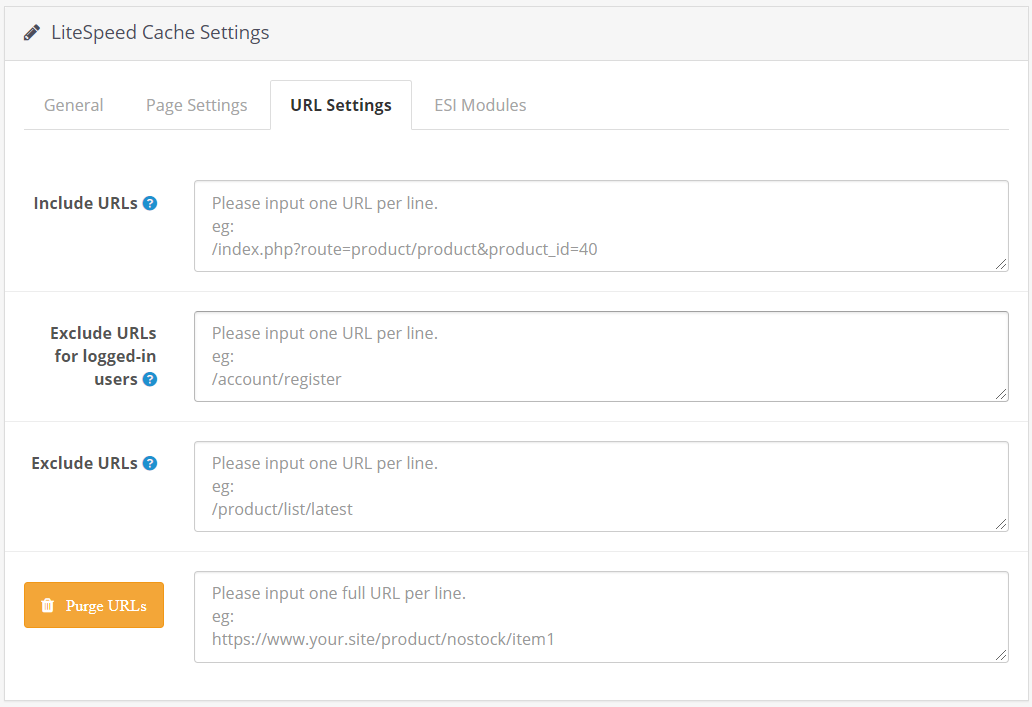

## URL Settings Tab¶

### Include URLs¶

Enter all URLs, one per line, that must be cached, regardless of the page settings.

### Exclude URLs for logged-in users¶

Enter all URLs, one per line, that must not be cached for logged-in users, regardless of the page settings, or the Include URLs setting above.

### Exclude URLs¶

Enter all URLs, one per line, that must not be cached for anyone, regardless of the page settings, or the Include URLs setting above.

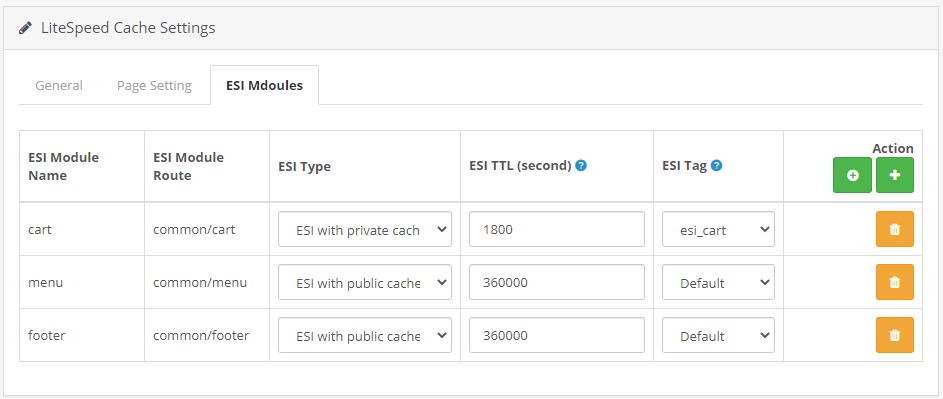

## ESI Modules Tab¶

For each module listed, you can determine whether it is to be an ESI module, and if so, whether it will be public, private, or not cached at all. You can also set a TTL (Time to Live) tht differs from the rest of the site. This is particularly useful for time-sensitive widgets.

Choose an ESI tag to indicate that the module should be purged when related events occur.

Use the green buttons to add a new ESI module or ESI route.

Use the orange trash can button to purge the given module from cache.

Last update: June 4, 2021
