Configuration

LiteSpeed Web Server comes with a persistent Perl CGI daemon which can run Perl CGI scripts without modification, just like mod_perl in Apache.

For a Control Panel Environment

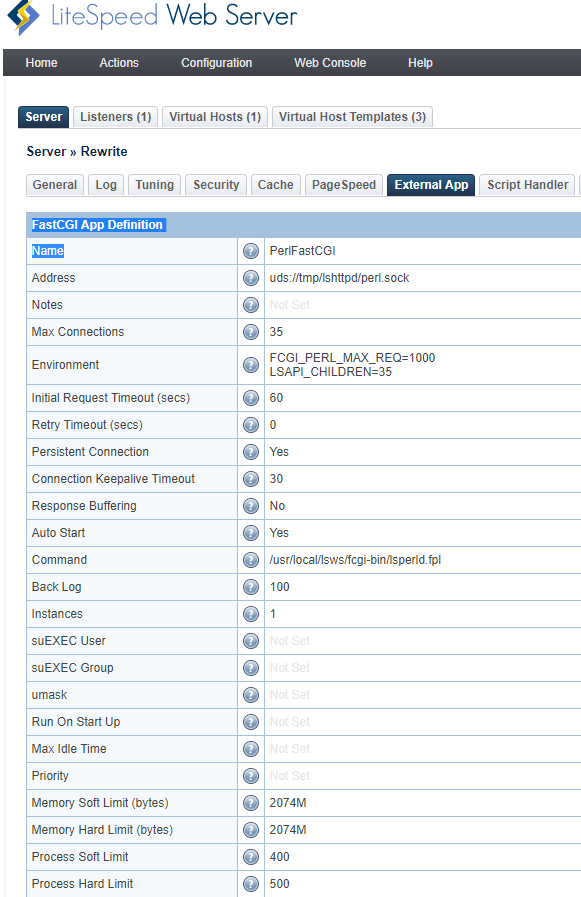

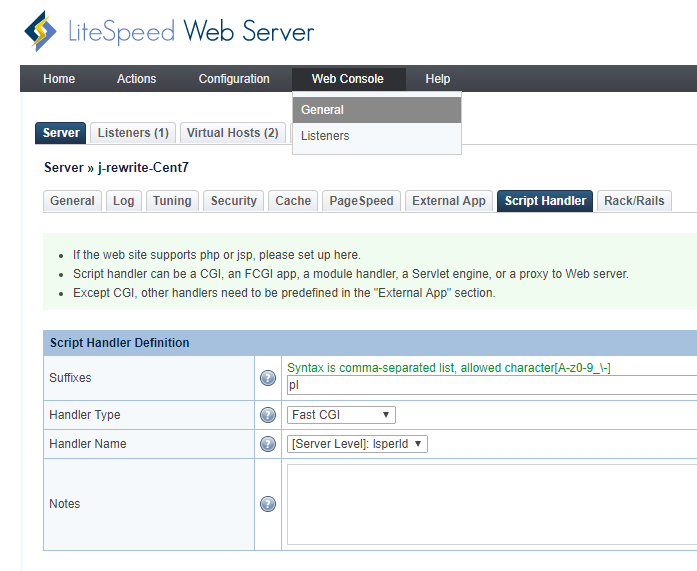

Set up a Perl FastCGI External App and Script Handler

If you configure LSWS to run Perl under a control panel environment, such as cPanel, you need to configure it as a Fast CGI application, and then add a script handler for the pl suffix. The Perl CGI daemon is located at /usr/local/lsws/fcgi-bin/lsperld.fpl

    <extProcessor>
      <type>fcgi</type>
      <name>PerlFastCGI</name>
      <address>uds://tmp/lshttpd/perl.sock</address>
      <maxConns>35</maxConns>
      <env>FCGI_PERL_MAX_REQ=1000</env>
      <env>LSAPI_CHILDREN=35</env>
      <initTimeout>60</initTimeout>
      <retryTimeout>0</retryTimeout>
      <persistConn>1</persistConn>
      <pcKeepAliveTimeout>30</pcKeepAliveTimeout>
      <respBuffer>0</respBuffer>
      <autoStart>1</autoStart>
      <path>/usr/local/lsws/fcgi-bin/lsperld.fpl</path>
      <backlog>100</backlog>
      <instances>1</instances>
      <memSoftLimit>2074M</memSoftLimit>
      <memHardLimit>2074M</memHardLimit>
      <procSoftLimit>400</procSoftLimit>
      <procHardLimit>500</procHardLimit>
    </extProcessor>
   <scriptHandler>
      <suffix>pl</suffix>
      <type>fcgi</type>
      <handler>PerlFastCGI</handler>
    </scriptHandler>

Restart LiteSpeed Web Server.

Testing on cPanel

For a Perl or CGI script to run in a control panel environment, normally you should place the script in a designated directory such as /cgi-bin/, otherwise it may not work.

You can create a simple test script hello.pl under /cgi-bin/

  #!/usr/bin/perl
  use strict;
  use warnings;
  print "Content-type: text/html\n\n";
  print("Hello World\n");

You can also run perl from the command line to verify the error:

  perl -w hello.pl

Visit https://example.com/cgi-bin/hello.pl from the browser to see if it works. Be sure to replace example.com with your own domain name.

If it works from the command line but doesn't work from the browser, most likely this is caused by an x permission issue. Perl or the CGI script will need to allow everyone x permission, like so:

  chmod 755 hello.pl

Perl script errors are beyond our support scope and you are encouraged to check cPanel's documentation to troubleshoot similar CGI/Perl issues on cPanel.

For LSWS Native Configuration

Perl FastCGI for LSWS Native Configuration

For LSWS native configuration, you also need to set up the Fast CGI application and add a script handler for the pl suffix.

As lsperld.fpl utilizes the Fast CGI interface, it is usually already configured for control panel environments. That may not be the case in a LSWS + bare OS situation. You may need to install the Perl Fast CGI module FCGI.pm.

The Perl Fast CGI module is available at CPAN(Comprehensive Perl Archive Network).

On CentOS7, add the perl-CPAN package first:

yum install epel-release
yum install gcc
yum install perl-CPAN

The following command can be used to install FCGI.pm through CPAN:

perl -MCPAN -e 'install FCGI'

On a CentOS box, you can install perl-CGI and perl-FCGI packages through:

yum install perl-CGI

Verify the installed location of FCGI.pm.

find / -name FCGI.pm
/usr/lib64/perl5/vendor_perl/FCGI.pm

In order to deal with the increasing memory usage of a persistent process, the number of requests that a Perl daemon can process is controlled by an environment variable FCGI_PERL_MAX_REQ. The default value is 500.

For example: FCGI_PERL_MAX_REQ=1000.

Restart LSWS to make the changes effective.

Testing

Place a test script called test.pl in the document root of one of your virtual hosts:

#!/usr/bin/perl
print "Content-type:text/html\n\n";
print <<EndOfHTML;
<html><head><title>Perl Environment Variables</title></head>
<body>
<h1>Perl Environment Variables</h1>
EndOfHTML
foreach $key (sort(keys %ENV)) {
  print "$key = $ENV{$key}<br>\n";
}
print "</body></html>";

You should see something similar to the following when visting http://example.com/test.pl:

Perl Environment Variables
DOCUMENT_ROOT = /usr/local/lsws/DEFAULT/html
FCGI_PERL_MAX_REQ = 1000
FCGI_ROLE = RESPONDER
GATEWAY_INTERFACE = CGI-PerlEx/1.1
HTTP_ACCEPT = text/html,application/xhtml+xml,application/xml;q=0.9,image/webp,image/apng,*/*;q=0.8
HTTP_ACCEPT_ENCODING = gzip, deflate
HTTP_ACCEPT_LANGUAGE = en-US,en;q=0.9
HTTP_CONNECTION = keep-alive
HTTP_COOKIE = SESS3d805002e809eafb1aa4295801ff28d0=AXgcoPkfgngK9KYuHS4wIn9eVLHEndfHAy7Ys9Gnj4M; COMBIN=2e9910cb4771588a621ae6371c01550bdbe3e6d498788981dca50a1ab6bef6d3; COMINF=bypass_varnish
HTTP_HOST = 192.168.0.178:8088
HTTP_UPGRADE_INSECURE_REQUESTS = 1
HTTP_USER_AGENT = Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/65.0.3325.181 Safari/537.36
LSAPI_CHILDREN = 35
LSAPI_PADDING = leave_some_room_to_avoid_overwrite_important_env
PATH = /bin:/usr/bin:/usr/local/bin
QUERY_STRING =
REMOTE_ADDR = 192.168.0.198
REMOTE_PORT = 4322
REQUEST_METHOD = GET
REQUEST_URI = /test.pl
SCRIPT_FILENAME = /usr/local/lsws/DEFAULT/html/test.pl
SCRIPT_NAME = /test.pl
SERVER_ADDR = 192.168.0.178
SERVER_ADMIN =
SERVER_NAME = 192.168.0.178
SERVER_PORT = 8088
SERVER_PROTOCOL = HTTP/1.1
SERVER_SOFTWARE = LiteSpeed

Troubleshooting

Installation Error on LSWS Native

Without the perl-CPAN package installed, installation may run into the following error:

Can't locate CPAN.pm in @INC (@INC contains: /usr/local/lib64/perl5 /usr/local/share/perl5 /usr/lib64/perl5/vendor_perl /usr/share/perl5/vendor_perl /usr/lib64/perl5 /usr/share/perl5 .).
BEGIN failed--compilation aborted.

Without installing FCGI.pm, you may run into the following error in stderr.log and see a 503 error on screen.

[STDERR] Can't locate FCGI.pm in @INC (@INC contains: /usr/local/lib64/perl5 /usr/local/share/perl5 /usr/lib64/perl5/vendor_perl /usr/share/perl5/vendor_perl /usr/lib64/perl5 /usr/share/perl5 .) at /usr/local/lsws/fcgi-bin/lsperld.fpl line 3

lscgid: execve() No such file error

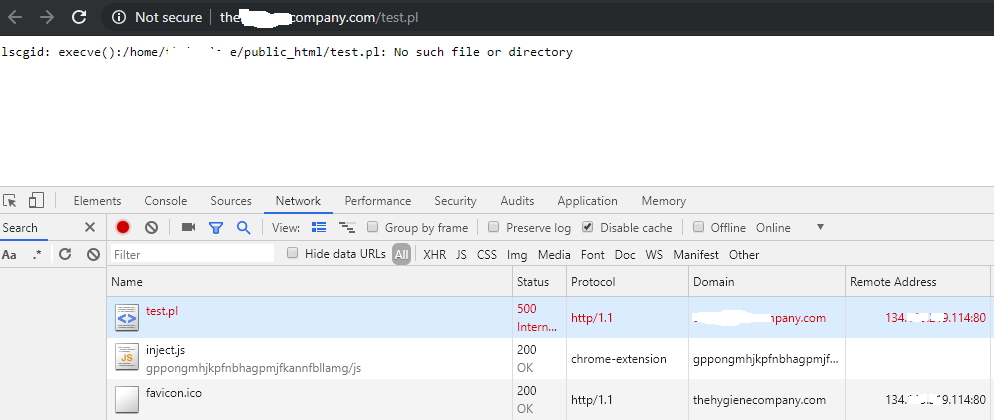

A simple test perl script on a cPanel server runs into the following error and generates a 500 error code:

lscgid: execve():/home/user1/public_html/test.pl: No such file or directory

But /home/user1/public_html/test.pl does exist. So why the No such file or directory error?

Inspect the file in vi:

cd /home/user1/public_html/
vi test.pl

There is a ^M at the end of each line, which means the file is in DOS/Windows format, not Unix format:

#!/usr/bin/perl^M
print "Content-type:text/html\n\n";^M
print <<EndOfHTML;^M
<html><head><title>Perl Environment Variables</title></head>^M
<body>^M
<h1>Perl Environment Variables</h1>^M
EndOfHTML^M
foreach $key (sort(keys %ENV)) {^M
  print "$key = $ENV{$key}<br>\n";^M
}^M
print "</body></html>";

To test further, try:

[[ $(file test.pl) =~ CRLF ]] && echo dos

It returns:

dos

Because of the difference in DOS vs Unix format, LiteSpeed lscgid can not recognize the test.pl file. Hence the No such file or directory error.

To fix the issue, you will need to convert from DOS format to Unix. There are many ways to do so, including the following awk command:

mv test.pl test.pl.dos
awk 'sub("$", "\r")' test.pl.dos > test.pl

You can inspect test.pl again in vi to verify the file format. You should no longer see the trailing ^M in each line.

#!/usr/bin/perl
print "Content-type:text/html\n\n";
print <<EndOfHTML;
<html><head><title>Perl Environment Variables</title></head>
<body>
<h1>Perl Environment Variables</h1>
EndOfHTML
foreach $key (sort(keys %ENV)) {
print "$key = $ENV{$key}<br>\n";
}

After the conversion, you should find the perl script is working perfectly.


Last update: May 29, 2024
