LSMCD Secure User Data CloudLinux/cPanel Interface

This facility provides a user interface for those CloudLinux/cPanel users using LSMCD configured with SASL and User-Level security.

This interface is intended for cPanel end-users. This panel lets a user change their own password and see statistics for their specific data in their user-managed LSMCD space.

WHM Administrators will need to use the command line SASL to create and delete users. Users must be created in advance and must match their cPanel user names. There is a way to automatically create a user for each cPanel user for WHM administrator explained later in this article.

Installation

Installation must be performed on the system running as root. The process is:

  1. Download the software
  2. Run the installation script.

Download the Software

The easiest way to download the software is to clone the specific git repository. This is done from a root command prompt, after changing to a directory where the software can be stored (cd /tmp is often used):

git clone https://github.com/rperper/lsmcd_cpanel_plugin.git

Install the Software

To install the software you will need to change to the correct directory where the installation script is stored and execute the script:

cd lsmcd_cpanel_plugin/res/lsmcd_usermgr
./install.sh

The install should run without errors, but any significant ones will be displayed on the screen. It will determine if lsmcd has been installed and install it if it's not already there.

If you see missing dependencies, particularly concerning Perl and Git, check your /etc/yum.conf file. You must not have perl* in the exclude list. If it's there, temporarily remove it and try the install script again.

Administration

You must configure LSMCD and SASL using the sasldb method which uses the saslpasswd2 program. This is described at LSMCD Security Using SASL

Users must be created in advance and must match their cPanel user names. Passwords and stats can be managed by the users themselves using the cPanel plugin described here.

There is a way to automatically create a user for each cPanel user for WHM administrator. You may use a script like the following when you ssh login as a root user:

    #!/bin/bash

    user_list=$(sasldblistusers2 /etc/sasllsmcd | cut -d@ -f1)
    #get current user list

    for name in $(ls /home/);
    do
      if [[ -d /home/$name/public_html ]] ; then
      #check public_html existance to make sure it's vhost user instead of cPanel created dir
            if ! echo $user_list | grep -i -q $name ; then
                #check if user already in the list to avoid override existing users
                passwd=$(head /dev/urandom | tr -dc A-Za-z0-9 | head -c 10 ; echo '')
                echo $passwd | saslpasswd2 -p -f /etc/sasllsmcd $name
                # use -p to set a random password without prompt
                echo "$name added into LSMCD"
            else
                echo "$name already in the list..."
            fi
      fi
    done

If you like, you can hook the script into cPanel's user creation action, like so:

    /usr/local/cpanel/bin/manage_hooks \
    add script /path/to/the/script.sh \
    --stage post \
    --category Whostmgr \
    --event Accounts::Create \
    --manual
Replace /path/to/the/script.sh with the actual location of your script. The script ownership should be root:root with 755 permission.

You can also use similar commands to create a custom script, and run it automatically with cPanel user creation:

    passwd=$(head /dev/urandom | tr -dc A-Za-z0-9 | head -c 10 ; echo '')
    echo $passwd | saslpasswd2 -p -f /etc/sasllsmcd $name
Pass the username in as $name The first line will generate a random password, and the second line will insert it into the SASL file for the username.

Once a new user is added, they may need to log into the cPanel plugin and manually change the password.

Use

Once the software is installed, cPanel users will see a new option in their Advanced group:

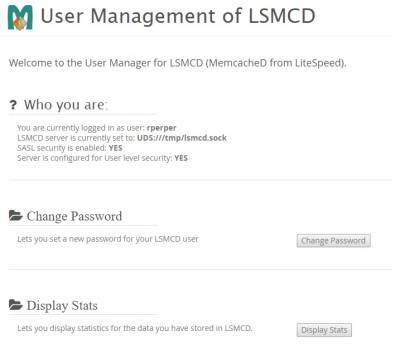

When the item has been selected users will be brought to the main menu:

This screen has 3 groups of data:

  1. Who you are:
    1. User to be used for LSMCD (the logged on user)
    2. LSMCD server address extracted from /usr/local/lsmcd/conf/node.conf. Can be an IP address/port or UDS (Unix Domain Socket).
    3. Whether SASL security is enabled (the setting of Cached.UseSasl in node.conf)
    4. Whether User Level Security is enabled (the setting of Cached.DataByUser in node.conf).
  2. A button to change the password. Will only be enabled if SASL and User Level Security is enabled.
  3. A button to display stats. If user level security is enabled, the stats will be only for the user. If no security is enabled, the stats are system wide. Otherwise the button is disabled.

Change Password

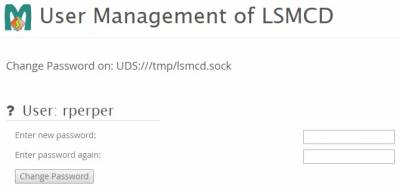

The Change Password button will only be enabled if both SASL and user level security is enabled. This facility is provided as access to a command prompt for running saslpasswd2 is not available to regular users, and regular users need the ability to keep the SASL password consistent with company policy. Press the button to enter the Change Password screen.

As is common with password change facilities, the new password must be entered twice and must match. Other than requiring a password, no additional password restrictions are placed on the password. When the user enters the new password in both text boxes and presses Change Password, the saslpasswd2 program is run and it is up to that program to validate the new password with system restrictions.

If there are errors, they are displayed in this screen and the user can fix the problem and try again. If the password change is successful, that fact is displayed and the text of the button is changed to Ok. When the user presses the button, the main window is redisplayed.

Display Stats

To display the Memcached statistics for the user (or the system as a whole if security is disabled), the user can press the Display Stats button.

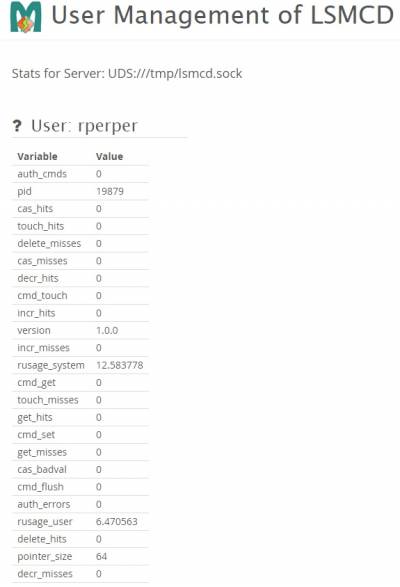

Stats are displayed in the format below, the format determined by LSMCD, and are basically identical to those available from Memcached. The primary difference being that the stats only reflect activity for those transactions done by the user validated by SASL and LSMCD.

Use the browser Back button to return to the main window.


Last update: July 7, 2020
